Disc, seat & operation
Review disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN50 - DN600 |
|---|---|
| Connection Type | Double Flange |
| Pressure | PN10/16 |
| Body Material | Carbon Steel · Ductile Iron |
| Disc Material | SS/PTFE · SS316 · WCB/PTFE |
| Lining Material | PTFE |
| Maneuvering | Bare Shaft · Double Acting Actuator · Electric Actuator · Gearbox · Hand Lever · Spring Return Actuator |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

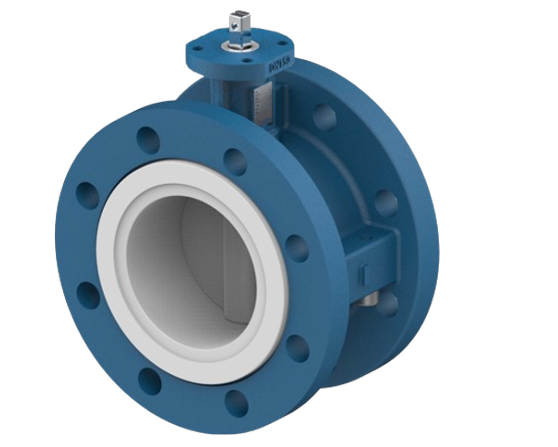

PTFE-lined butterfly valve with a double-flanged connection arrangement. Select the body and disc materials for the medium, and confirm the mating flange dimensions and operating requirements for the installation.
For technical documentation or assistance with your selection, contact Nordic Valves.
Review disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Describe the process medium and normal and design conditions. Review the pressure–temperature limits for the required size, body and sealing materials.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
