Disc, seat & operation
Review disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN20-DN300 |
|---|---|
| Connection Type | Butt Weld |
| Connection Standard | SMS/3A · DIN |
| Pressure Rating | 20 bar |
| Body Material | SS316 |
| Seat Material | EPDM · FPM · SILICONE · NBR |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

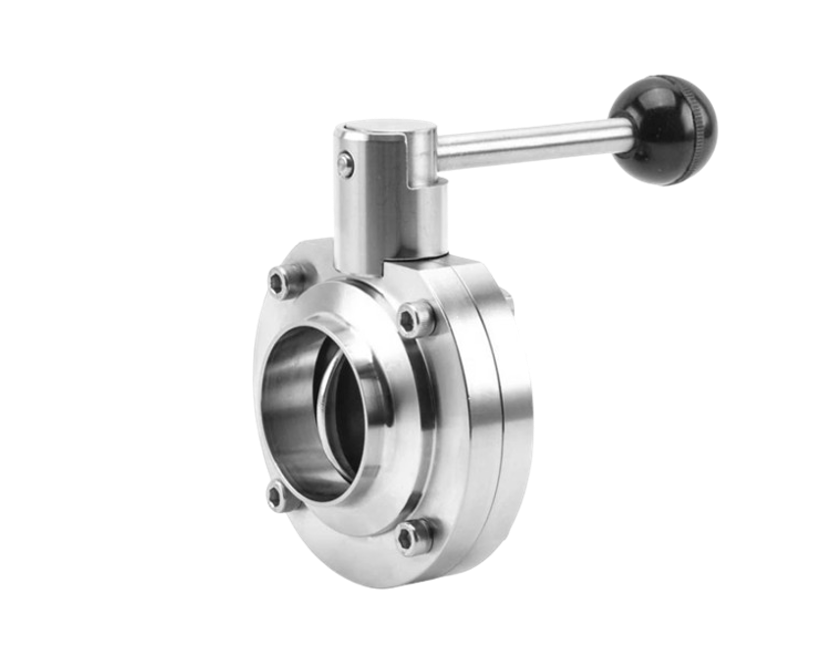

Sanitary butterfly valve with an SS316 body and butt-weld ends for welded process pipework. Match the tube standard and dimensions to the installation, and select the seat material for the process fluid and cleaning cycle.
Applications: Sanitary applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Product-contact materials, hygienic connections and cleaning cycles. Specify the valve around your process.
Explore application guidanceReview disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Specify the process medium, cleaning chemicals and temperatures. Include surface finish, drainability and product-contact documentation requirements in the technical review.
Listed body options: SS316. seat or seal options: EPDM · FPM · SILICONE · NBR. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
