Shut-off & stem sealing
Define the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN15-DN400 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN16 · PN25 · PN40 |
| Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 |
| Body Material | Carbon Steel · Ductile Iron · SS316 |
| Disc Material | SS316 + Stellite · SS420 |
| Seat Material | SS304 · Stellite |
| Working Temperature | -196°C~600°C |
| Stem Seal | Bellows seal |
| Body Pattern | Angle |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

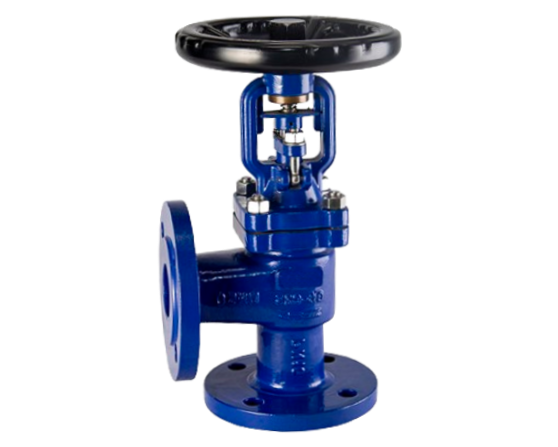

This bellow seal globe valve is engineered for exceptional leak prevention and safety. Equipped with a flexible metal bellows, it guarantees a secure, tight seal even in the most demanding conditions. The durable construction ensures it can withstand high pressures and temperatures, offering reliable and long-lasting performance.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Steam isolation, condensate removal and return lines. Bring pressure, temperature and load into the same conversation.
Explore application guidanceDefine the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
Provide the steam pressure and temperature, including start-up conditions. For condensate service, include the load and downstream pressure so the duty can be reviewed.
Listed body options: Carbon Steel · Ductile Iron · SS316. seat or seal options: SS304 · Stellite. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
Review your quotation
